Product Features:
● High current and voltage carrying capacity.
● Simple, quick and safe effective field assembly.
● The outer cover has the capacity of anti-aging and resistance to ultraviolet radiation.
● It can be used in the outdoor iron environment.
● Expansion connector are available for future requirement.
● Double permanent connection are adoptered for all of the connecting.

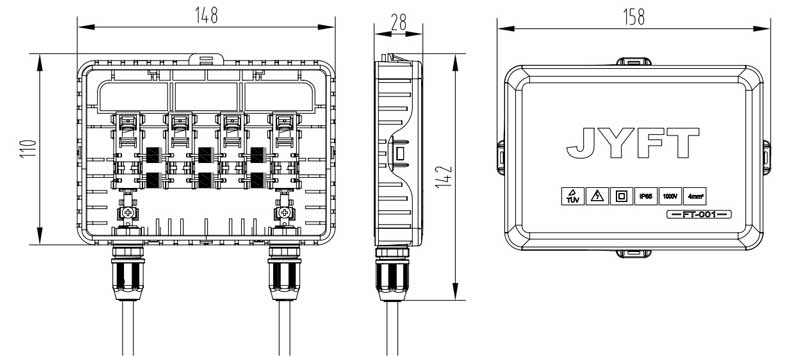

Structure:
Number of terminals | 4 |
Number of diodes | 6 |
Cable Spec | 4mm2 |
Connection method | Clamp |
Weight | 345(g) |
Specifications:
Rated current | 8A |
Rated Voltage | 60V |
Operating Temperature | -40°C to 85°C |
Protection Degree | IP65 |
Protection Class | Class II |
